SpaceWire Recorder Mk2

The SpaceWire Recorder Mk2 is designed to support the validation and debugging of complete SpaceWire systems. It can be used to unobtrusively record and view large quantities of traffic travelling over up to four SpaceWire links. The visibility this provides greatly helps to confirm a SpaceWire system is operating correctly and aids debugging when problems are detected.

The Recorder Mk2 is inserted inline on SpaceWire links of interest. When recording is started, packets, time-codes and link errors are written to solid-state disk along with their time information. When recording is stopped, software indexes the recorded traffic to minimise access time, and then displays it in network and packet views ready to be inspected.

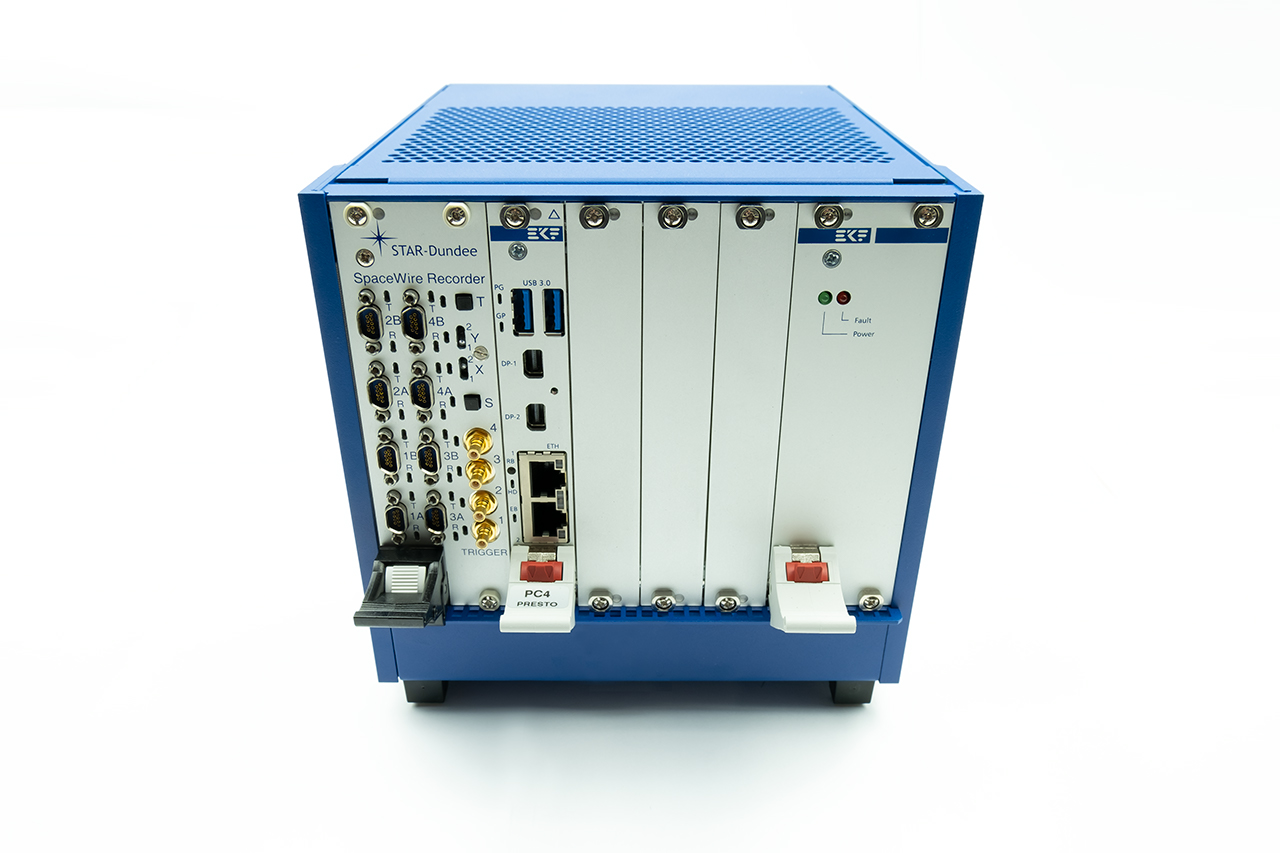

The SpaceWire Recorder Mk2 is a complete computer rack system. It consists of a cPCI chassis containing STAR-Dundee’s SpaceWire Recorder board, a powerful CPU card with two solid-state disks, and a power supply.

NOTE: The Recorder Mk2 supercedes the original SpaceWire Recorder. The Recorder Mk2 board now supports link speeds of up to 400 Mbit/s (previously 200 Mbit/s); a more compact and quiet chassis is provided; and the CPU board has been updated. Additionally, a much more capable software application has replaced the Traffic Viewer software, providing improved traffic visibility and enhanced functionality. Please note the new Recorder software application is compatible with the original SpaceWire Recorder and can be made available to download to existing Recorder users (please contact us for more information).

Product Features

  • Unobtrusively record and view traffic travelling over up to four SpaceWire links

    • Record packets, time-codes and link errors to hard disk along with their timing information
    • Large quantities of data can be recorded and viewed, limited only the by the size of the solid-state disks used
    • Stop recording on demand or automatically when a pre-defined quantity of data is recorded or time elapsed

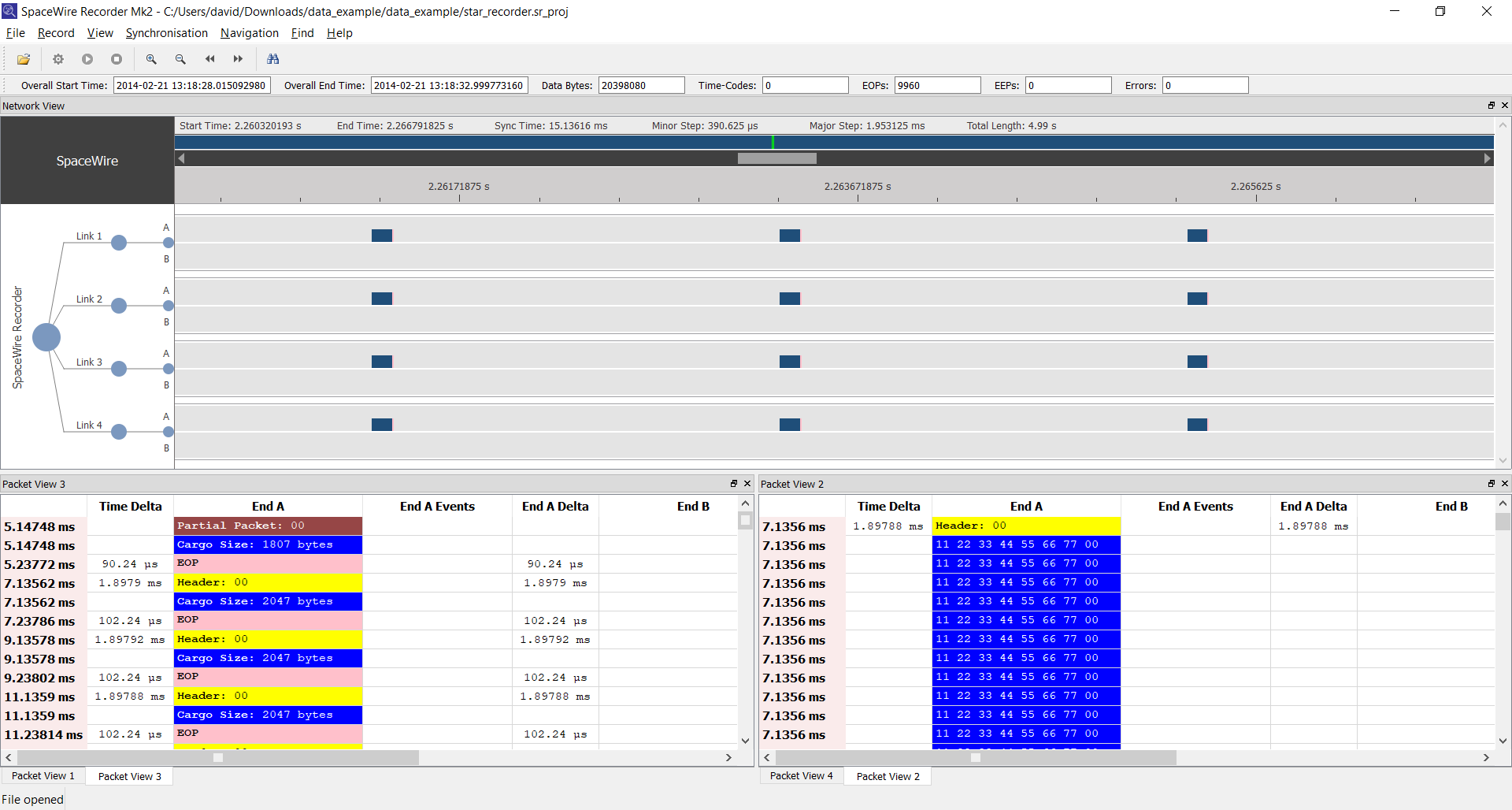

    • View recorded SpaceWire traffic in packet and network level software views
    • RMAP protocol analysis displays the fields of packets conforming to the RMAP standard
    • Search recorded traffic for data sequences, EOPs, EEPs, time-codes and link errors
    • View recording statistics
    • Export recorded traffic to CSV file for custom software to interpret

  • Complete computer rack system consisting of:

    • SpaceWire Recorder Mk2 board: Contains 8 x SpaceWire ports, 1 x cPCI interface, 4 x SMB connectors (disabled), 2 x switches (disabled) and 2 x push buttons (disabled)
    • Powerful CPU card: Contains Intel i7 processor, 16 GB RAM, 2 x mini DisplayPort, 2 x gigabit Ethernet and 2 x USB 3.0
    • Solid-state disks: 1 x 960 GB SSD for recording and 1 x 960 GB SSD for operating system files
    • Compact and quiet chassis
    • Power supply

  • Operates as a desktop unit or rack mountable (separate rack mounting kit required)

  • Software and accessories included:

    • Recorder Mk2 software application, Windows 10 Pro and all required drivers are pre-installed
    • User manual
    • 1 year’s technical support and maintenance

Technical Specs

  • Part Number

    323

  • Size

    • 172 x 168 x 208 mm (4U/32HP 19″ technology)

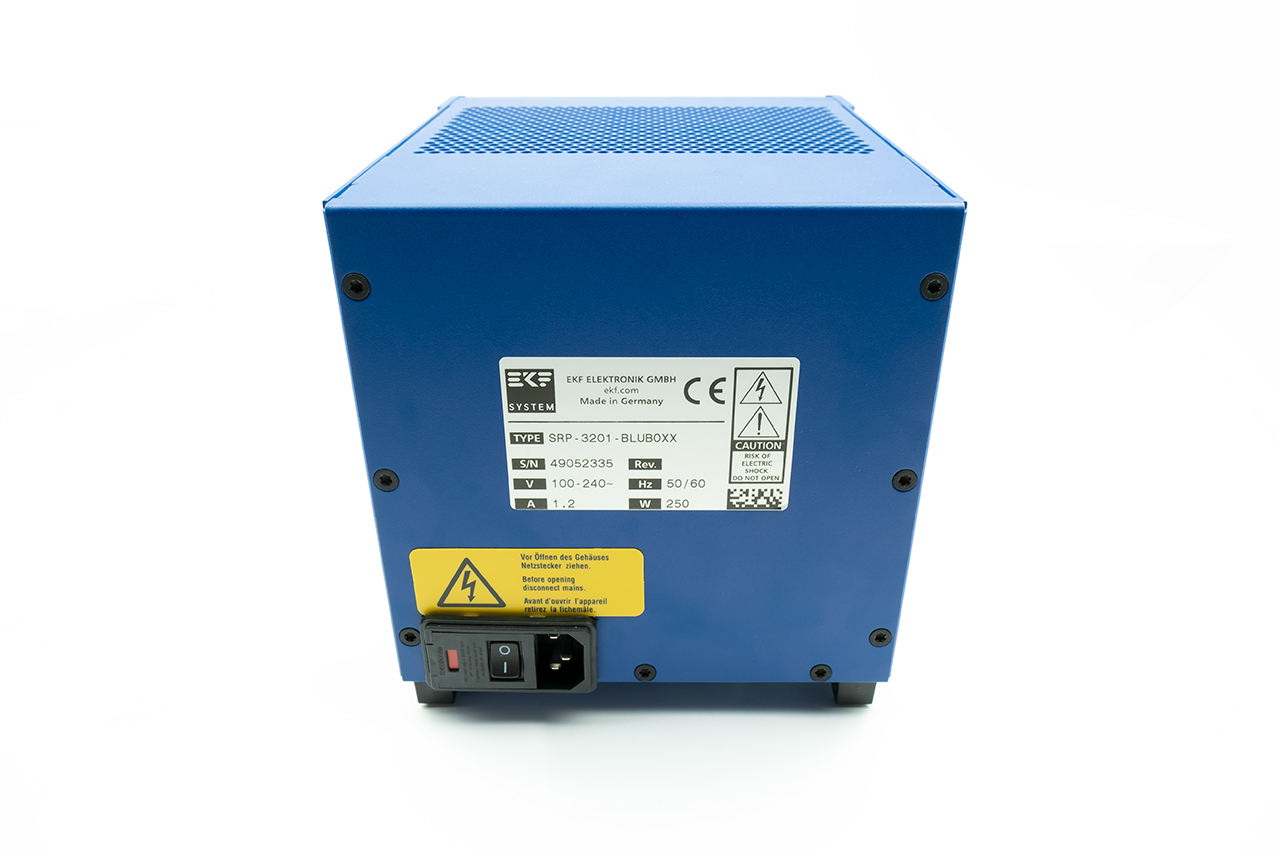

  • Power

    • Mains 110/240V AC

  • SpaceWire Ports

    • Compliant to ECSS-E50-12A, ECSS-E-ST-50-12C and ECSS-E-ST-50-12C Rev.1

    • Number of SpaceWire Ports: 8

    • Maximum Speed: 400 Mbit/s

    • Connectors: 9-pin micro-miniature D-type

  • Storage

    • 1 x 960 GB solid-state disk for recording

    • 1 x 960 GB solid-state disk for operating system files

  • Recording

    • Records SpaceWire packets, time-codes and link errors

    • Maximum aggregate recording data rate in excess of 600 Mbit/s (performance is dependent on packet size)

    • For example:

      • Records 1024 byte packets on two links in both directions at 150 Mbit/s data rate
      • Records 1024 byte packets on all four links in both directions at 75 Mbit/s data rate
